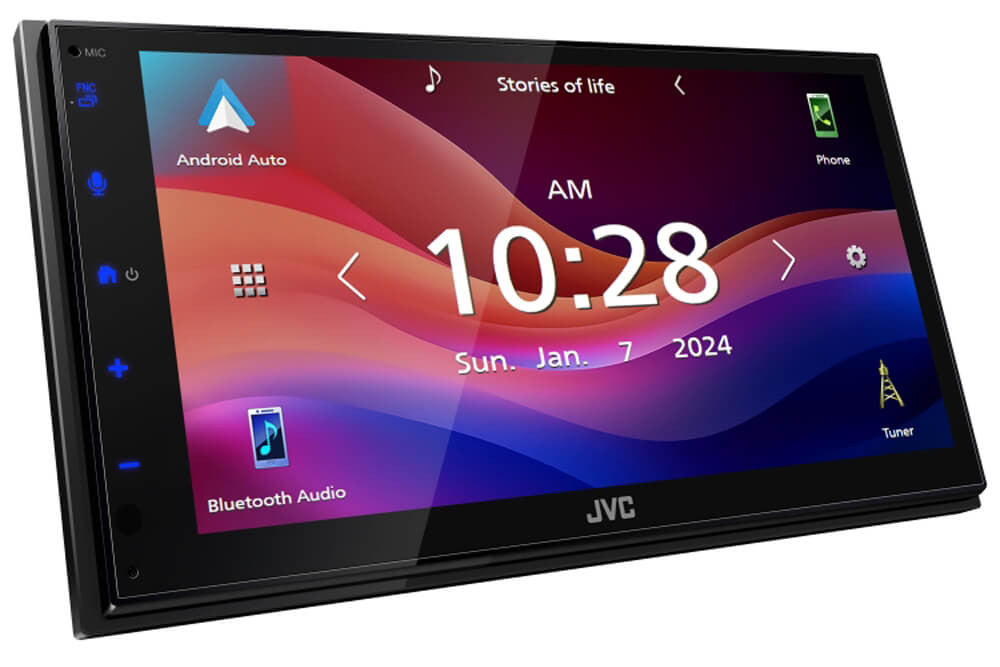

JVC KW-M690BTW Double DIN Radio

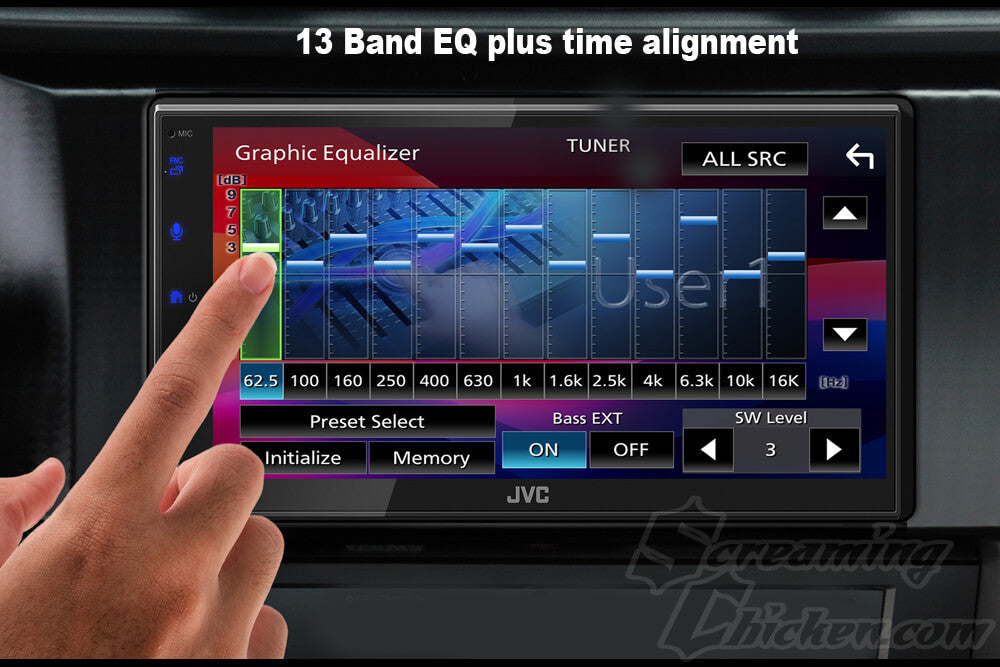

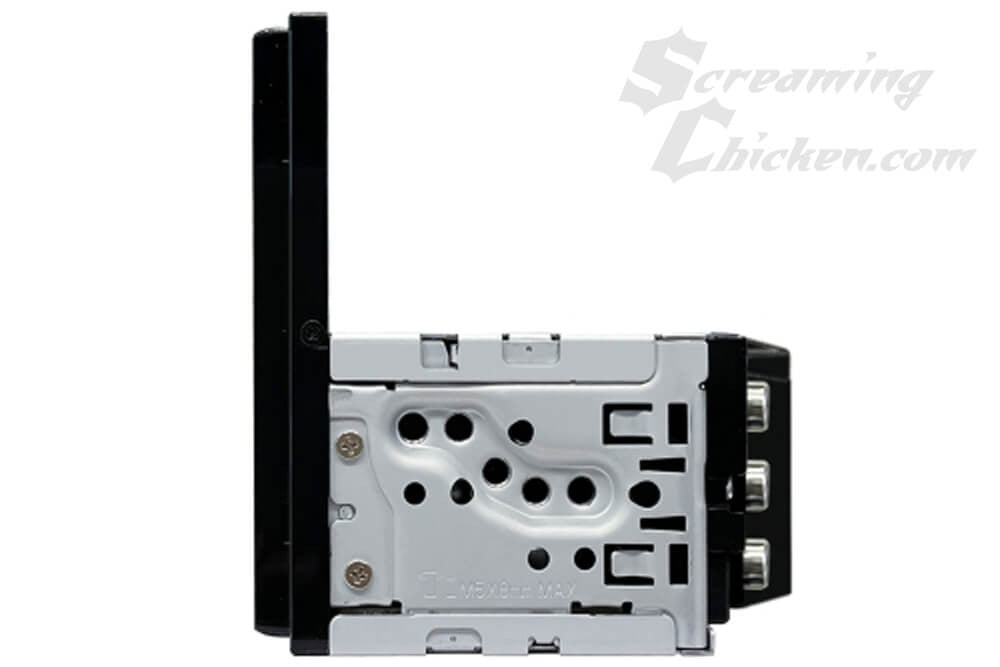

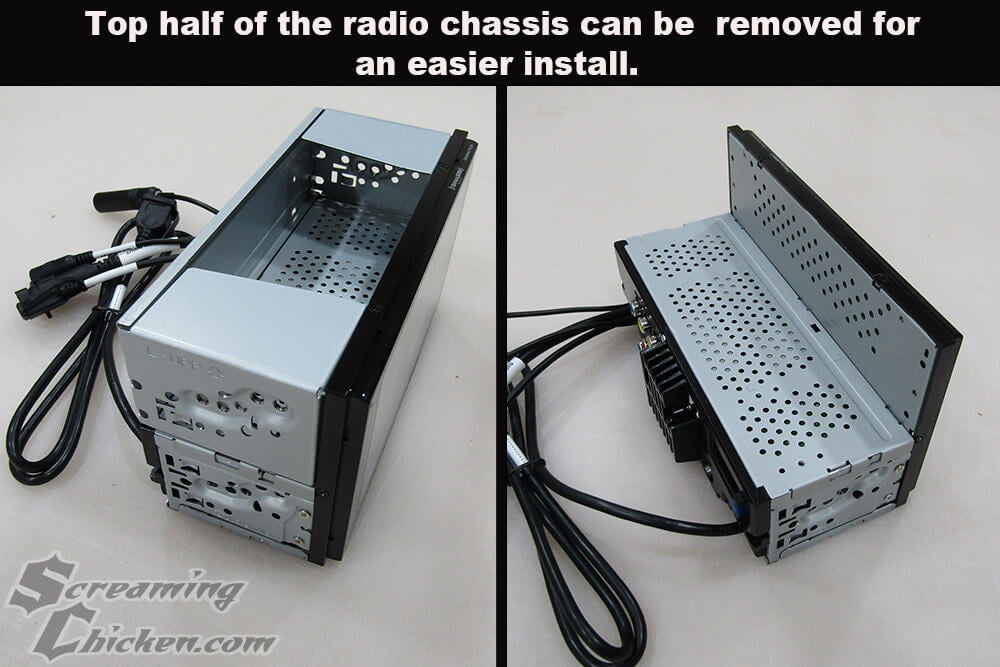

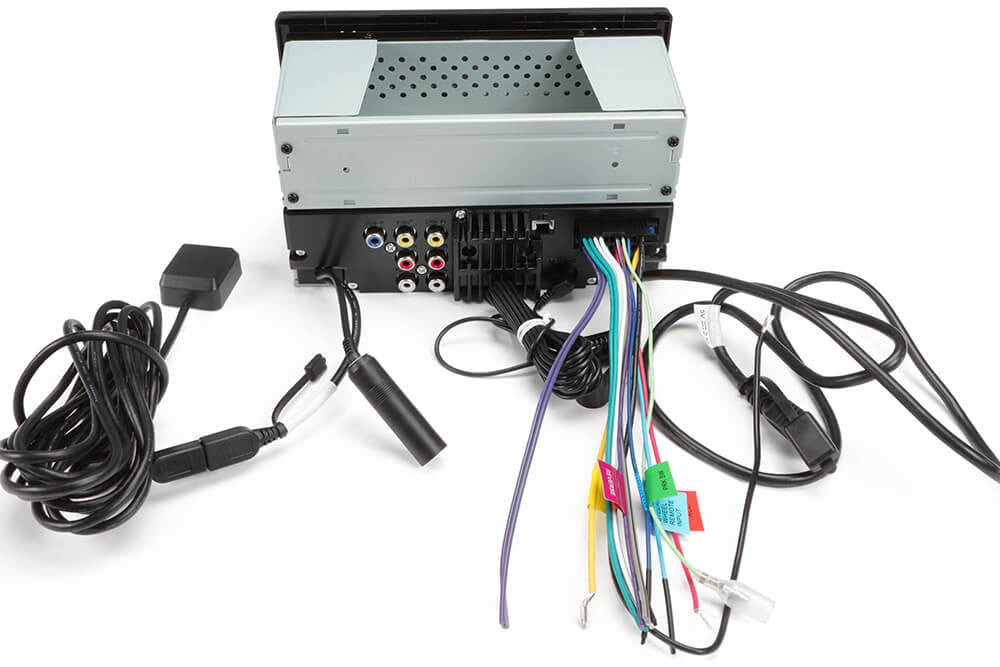

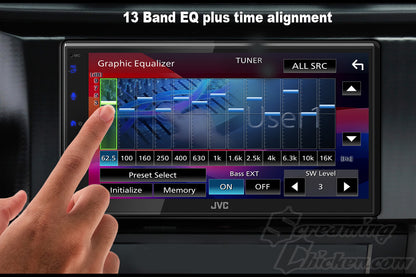

The KW-M690BT from JVC works great with our 1982-2002 Camaro & Firebird double din bezel/bracket kits. The KW-M690BT features wireless (no need to use USB) Apple CarPlay® and Android Auto™. Use your iPhone® or Android phone wirelessly, and the 6.8" screen displays the navigation, messaging, and music apps. The small chassis makes an easier install and clears heat/ac controls and makes a 1982-84 Firebird install much easier. Includes a microphone for hands free calls on your phone. This radio is easy to hook up one of our reverse cameras to and see where your going when backing up. Gesture Touch Control use finger movements to control volume level and forward/back. In addition to wireless Apple Carplay/Android Auto this radio also has a USB connection for phone charging. Features a 13 band graphic EQ with Drive EQ and digital time alignment and has 2.5 volt front and rear RCA outputs with a mono subwoofer RCA output, you can also control subwoofer level. Makes it easy to start with some speakers only and later on add amp and/or a sub. Blue button illumination for functions not on the screen. Will not fit without a double din bezel or extensive modifications to the stock bezel.

Product includes: Radio only

Install details:
1982-92 Camaro Standard Bezel - Will fit with no modifications, easy install
Install video link: 1982-92 Camaro Standard & Reverse Bezel install
1982-92 Camaro Reverse Bezel - unique chassis makes this install easier with no modifications
Install video link: 1982-92 Camaro Standard & Reverse Bezel install
1982-84 Firebird - will fit with no modifications, easy install
Install video link: 1982-84 Firebird Install

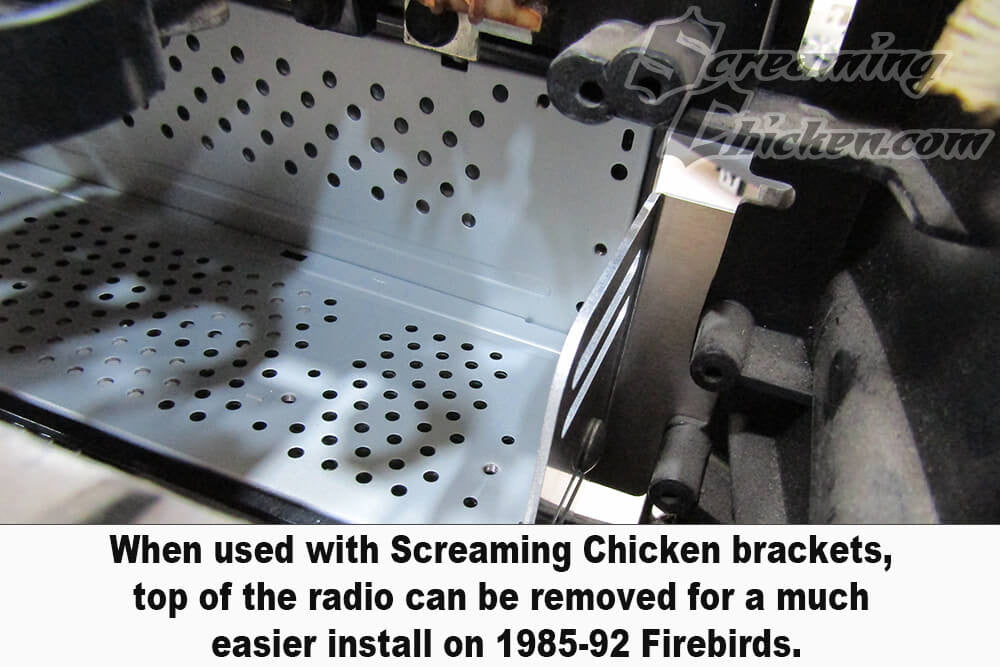

1985-92 Firebird - will fit with no modifications
Install video link: 1985-92 Firebird Install

1993-2002 Camaro & Firebird - Easy install with double din install kit
Video install links:
1997-2002 Camaro Install
1993-2002 Firebird install
