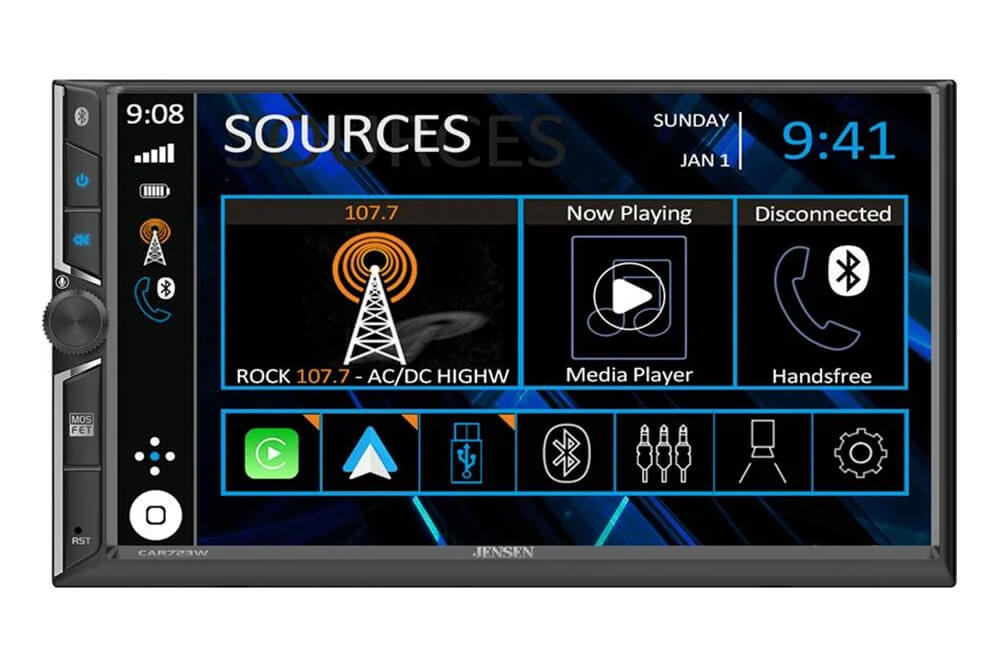

Jensen CAR723W Double DIN Radio

Add wireless Apple CarPlay, wireless Android Auto, Bluetooth, touchscreen controls, and camera capability to your third-generation F-body with the Jensen CAR723W Double-DIN Radio. This digital multimedia receiver works with compatible installation bezels for the 1982–1992 Chevrolet Camaro, Pontiac Firebird, and Trans Am.

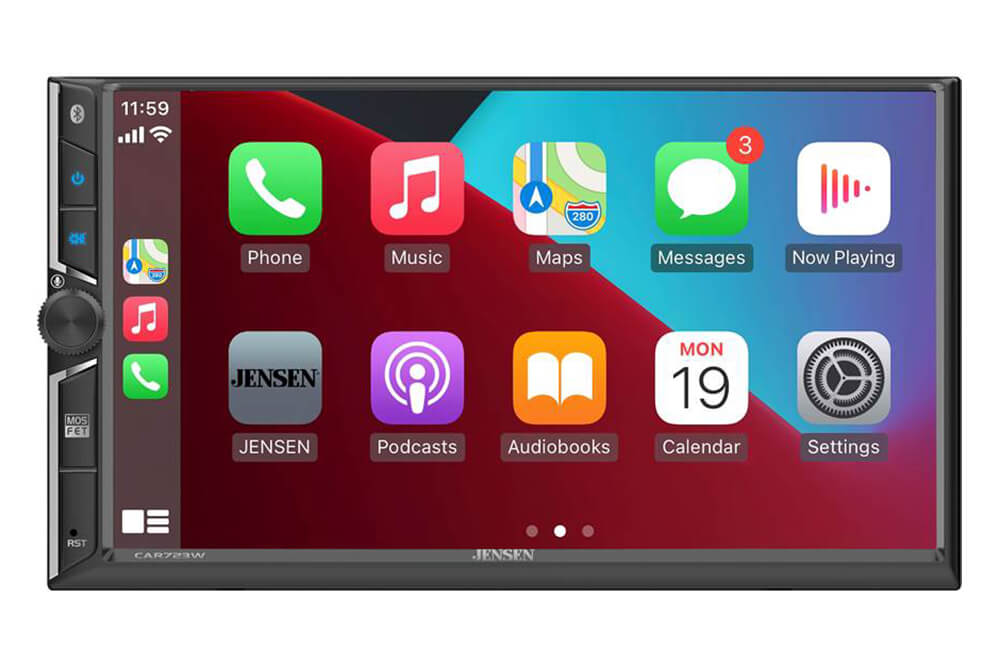

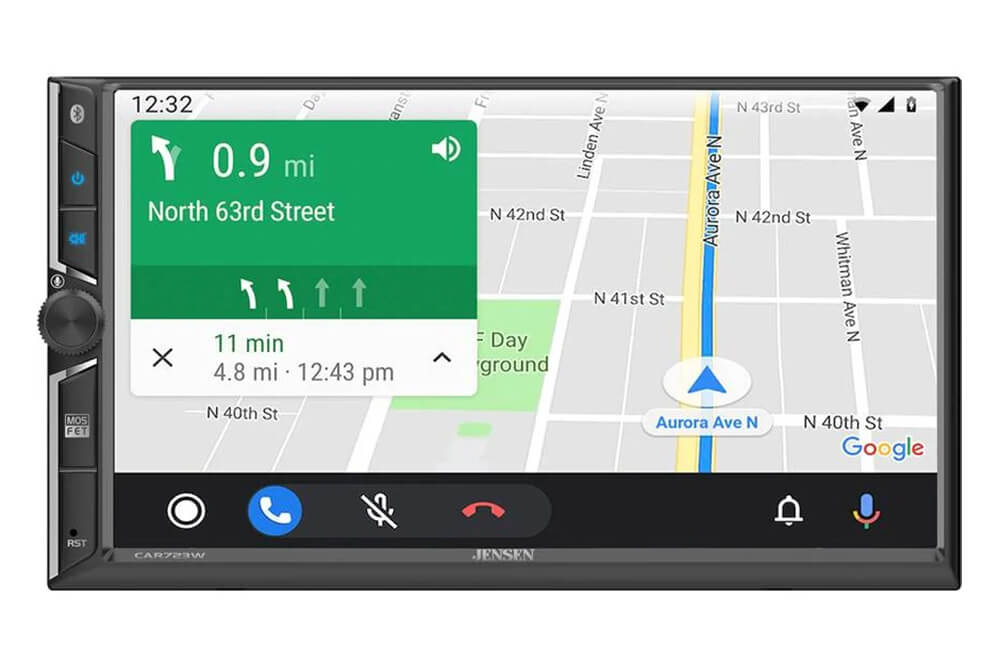

The 7-inch high-resolution touchscreen provides convenient access to navigation, phone calls, messages, music, and compatible smartphone apps. Apple CarPlay and Android Auto can be connected wirelessly or through USB, allowing you to use compatible phone features through the touchscreen or voice commands.

Built-in Bluetooth supports hands-free calling and wireless audio streaming. An external microphone is included for clearer calls, while the front-panel voice button provides access to Siri or Google Assistant through a compatible connected phone.

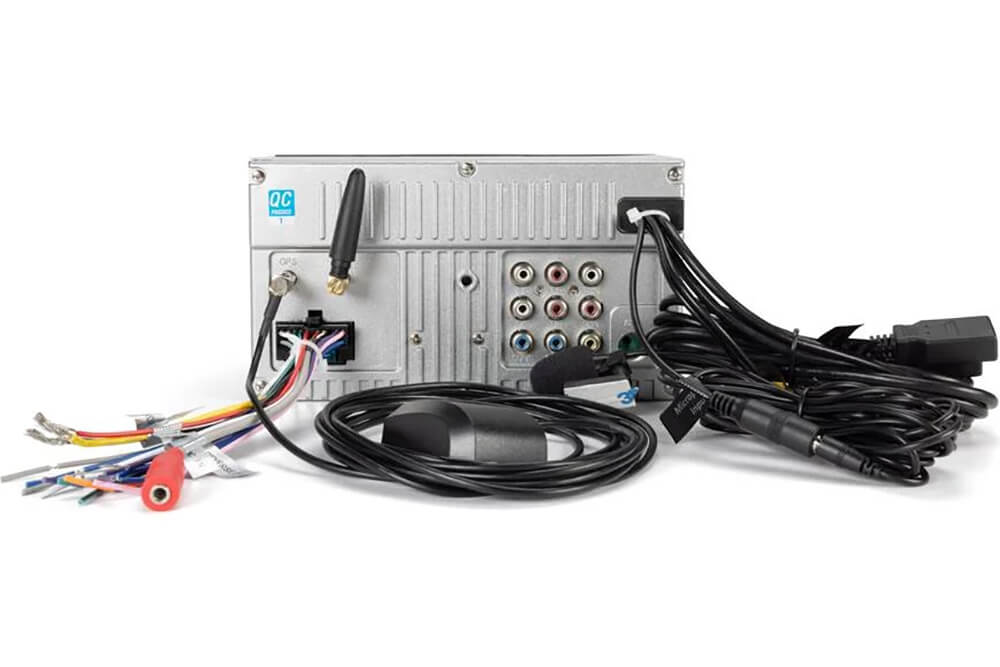

The CAR723W includes two rear USB connections for phone integration, compatible media playback, and charging. Front- and rear-camera inputs allow you to add an optional backup camera and front-view camera. Cameras are sold separately.

For upgraded audio systems, the receiver provides three pairs of 4-volt RCA preamp outputs for front, rear, and subwoofer amplifiers. A 10-band equalizer, seven preset EQ curves, balance, fader, and time-alignment controls provide additional sound-system adjustment.

Note that installation requires a double din bezel, see install details below.

Product includes: Radio only
Jensen part# CAR723W

Install details:
1982-92 Camaro Standard Double DIN Bezel - Will fit with no modifications, easy install
1982-92 Camaro Reverse Double DIN Bezel - Will fit on most cars, some 1985-89 cars have less space and can be more difficult requiring modifications.
1985-92 Firebird Double DIN Bezel - Will fit with no modifications
1982-84 Firebird Double DIN Bezel - Needs quite a bit of cutting on the center console to fit, not visible once install is done. Requires about 3.5" of cutting.

1993-2002 Camaro & Firebird - Easy install with double din install kit
Video install links:
1997-2002 Camaro Install
1993-2002 Firebird install

Key features:

• Designed for compatible 1982–2002 Camaro installations

• Designed for compatible 1982–2002 Firebird and Trans Am installations

• Jensen CAR723W double-DIN digital multimedia receiver

• 7-inch high-resolution touchscreen

• Wireless and wired Apple CarPlay

• Wireless and wired Android Auto

• Bluetooth music streaming

• Bluetooth hands-free calling

• External microphone included

• Siri and Google Assistant voice-control access

• Two rear USB connections

• USB media playback and 2.1-amp charging

• Front-view camera input

• Rear backup-camera input

• Automatic reverse-camera display when properly connected

• AM/FM tuner with RDS

• 30 radio-station presets

• FLAC and MP3 file playback

• 10-band graphic equalizer

• Seven preset EQ curves

• Three pairs of 4-volt RCA preamp outputs

• Front, rear, and subwoofer preamp outputs

• 16 watts RMS x 4-channel built-in amplifier

• 60 watts peak x 4 channels

• Six selectable illumination colors

• Compatible with steering-wheel controls when used with an appropriate adapter

• Approximately 4-inch chassis depth, excluding required wiring clearance

• No CD or DVD player
