1982-92 Camaro/Firebird Kenwood DMX4710S Double DIN Radio

Add Apple CarPlay, Android Auto, Bluetooth, and a modern touchscreen to your third-generation F-body with the Kenwood DMX4710S Double DIN Radio. Its compact 3-3/8-inch chassis makes this digital multimedia receiver especially well suited for the limited dashboard space in 1982–1992 Chevrolet Camaro, Pontiac Firebird, and Trans Am models.

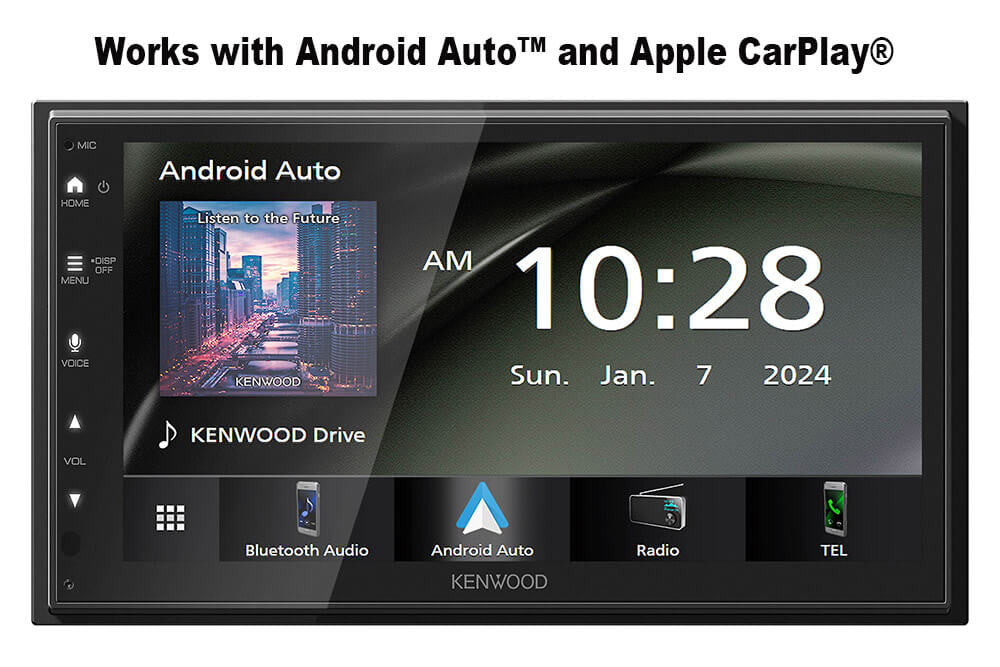

The DMX4710S features a 6.8-inch capacitive WSVGA touchscreen with 1024 × 600 resolution. Connect a compatible iPhone or Android phone through USB to access navigation, calling, messaging, music, podcasts, and other supported applications through Apple CarPlay or Android Auto.

Built-in Bluetooth provides hands-free calling and wireless music streaming. Apple CarPlay and Android Auto require a wired USB connection on this model, making the DMX4710S a good choice for drivers who do not need wireless smartphone projection.

A rear-camera input allows a compatible backup camera to be added. Adjustable on-screen parking guidelines provide additional assistance when reversing. A backup camera is not included.

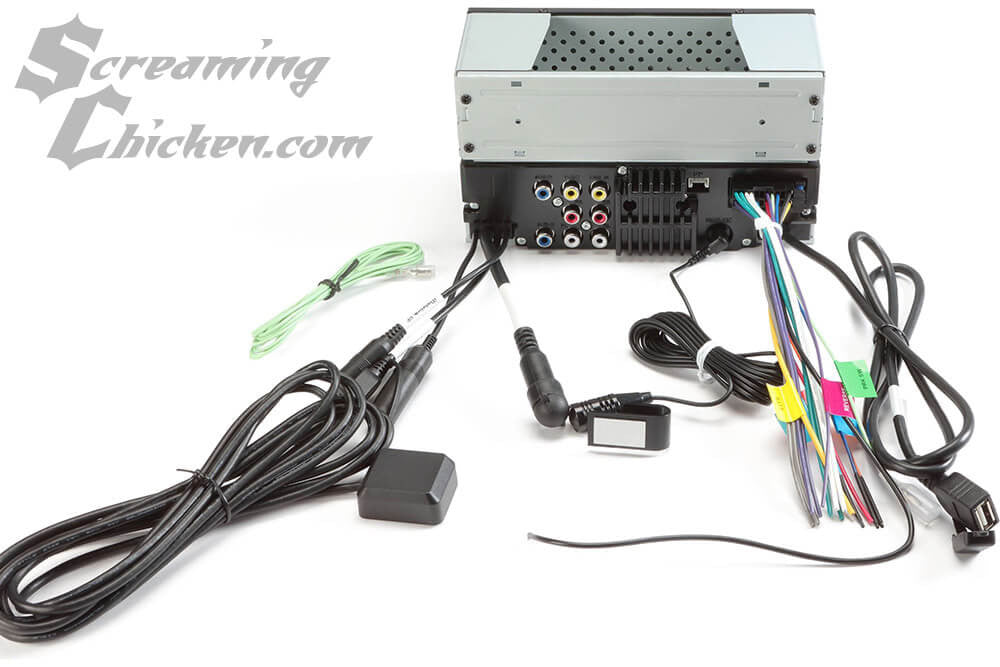

Audio controls include a 13-band graphic equalizer, digital time alignment, high-pass and low-pass crossover settings, and dedicated subwoofer controls. Front and rear 2.5-volt RCA preamp outputs plus a subwoofer output allow external amplifiers and a subwoofer to be added later.

 Will not fit without a double din bezel or extensive modifications to the stock bezel.

Product includes: Radio only

Install details:

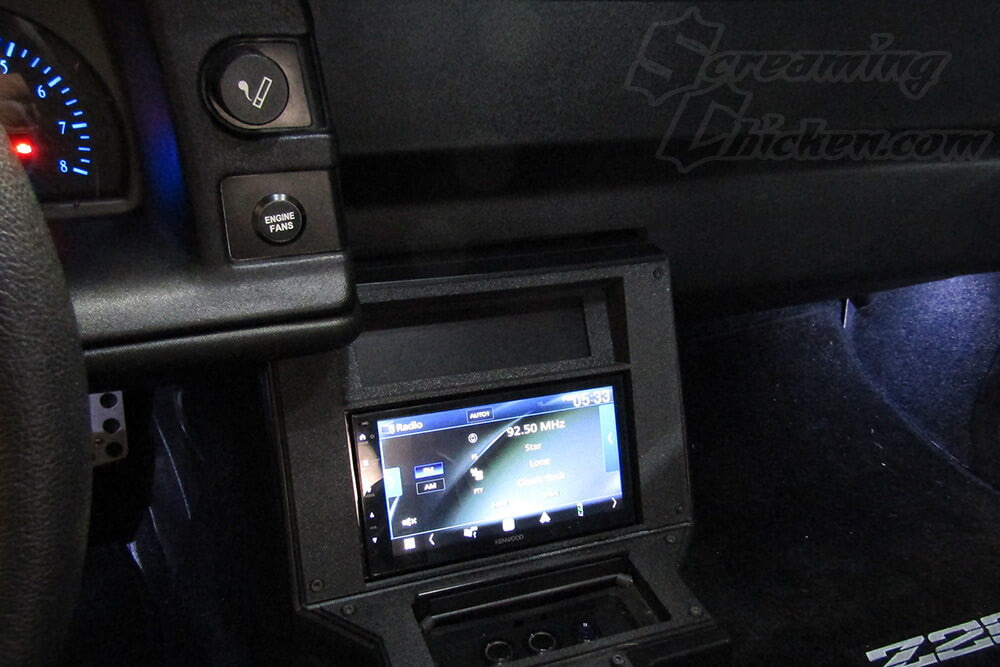

1982-92 Camaro Standard Bezel - Will fit with no modifications, easy install
Install video link: 1982-92 Camaro Standard & Reverse Bezel install
1982-92 Camaro Reverse Bezel - unique chassis makes this install easier with no modifications
Install video link: 1982-92 Camaro Reverse Bezel install
1985-92 Firebird - will fit with no modifications
Install video link: 1985-92 Firebird Install
1982-84 Firebird - will fit with no modifications, easy install
Install video link: 1982-84 Firebird Install

Key Features:

• Compatible with 1982–1992 Chevrolet Camaro installations
• Compatible with 1982–1992 Pontiac Firebird and Trans Am installations
• Designed for use with compatible Screaming Chicken double DIN bezel and bracket kits
• Short 3-3/8-inch chassis for limited dashboard space
• 6.8-inch capacitive touchscreen
• 1024 × 600 WSVGA display
• Wired Apple CarPlay
• Wired Android Auto

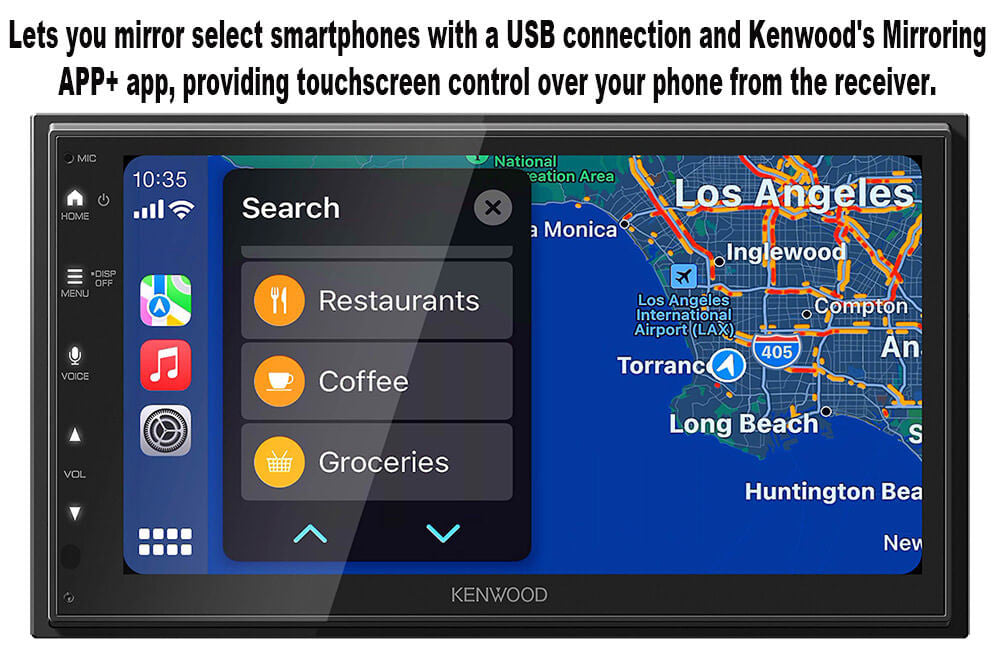

• USB smartphone mirroring on compatible devices
• Built-in Bluetooth 5.0
• Hands-free calling
• Wireless Bluetooth audio streaming
• External microphone included
• Rear USB connection
• Up to 2.1-amp USB charging
• Backup-camera input
• Adjustable parking guidelines
• SiriusXM ready with optional tuner
• MP3, WMA, WAV, AAC, and FLAC audio playback
• 13-band graphic equalizer
• Digital time alignment
• High-pass and low-pass crossover controls
• Front and rear 2.5-volt RCA outputs
• Dedicated subwoofer output
• Built-in amplifier rated at 22 watts RMS × 4 channels
• Maximum amplifier output rated at 50 watts × 4 channels
• Digital multimedia receiver without a CD or DVD mechanism



  Feature	DMX4710S	DMX5710S	DMX8710S
  CarPlay/Android Auto	Wired	Wired and wireless	Wired and wireless
  Chassis depth	3-3/8 inches	3-3/8 inches	4-5/16 inches
  Display	6.8-inch WSVGA	6.8-inch WSVGA	6.92-inch HD
  Camera inputs	One	One	Two
  Best customer	Value-focused buyer	Wireless-phone convenience	Premium display and expansion
