1982-2002 Camaro/Firebird Panhard Bar Lowering Bracket

Correct the rear suspension geometry on your lowered F-body with this Panhard Bar Lowering Bracket for the 1982–2002 Chevrolet Camaro, Pontiac Firebird, and Trans Am. Designed for vehicles using a panhard-bar relocation kit, the bracket lowers the driver-side axle mounting point by 2.25 inches.

Relocating the panhard bar at the chassis can change its angle and reduce clearance between the bar and its support brace. This axle-side lowering bracket repositions the driver-side mounting point to help restore the intended panhard-bar angle and provide the clearance required by the relocation system.

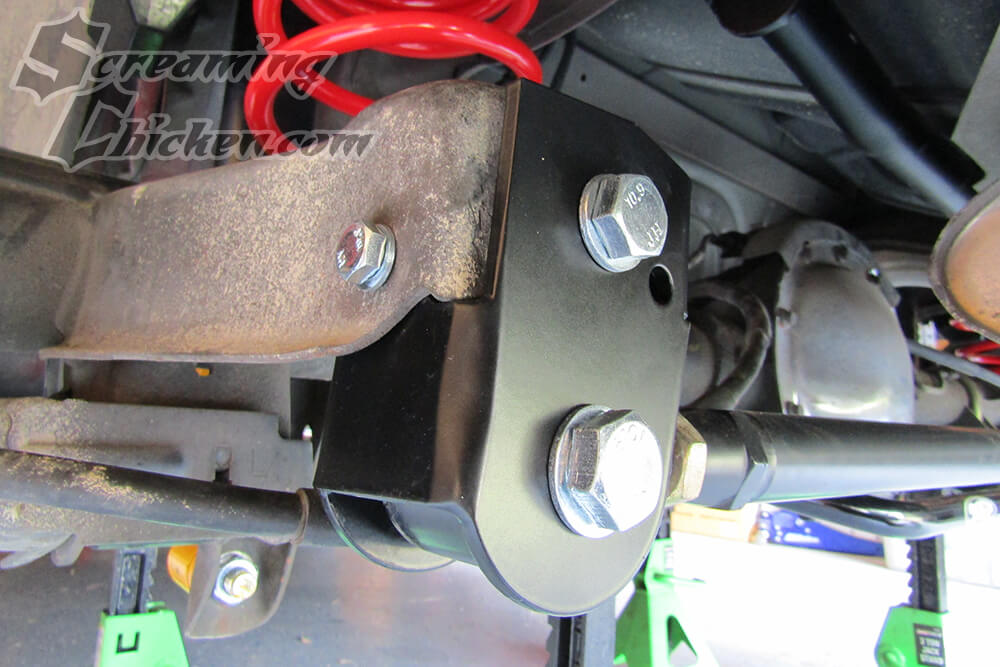

The bracket mounts to a factory GM rear axle housing and is precision laser-cut and jig-built for consistent fitment. A satin-black powder-coated finish provides corrosion protection, and high-grade installation hardware is included.

Key features:

• Fits 1982–2002 Chevrolet Camaro models
• Fits 1982–2002 Pontiac Firebird and Trans Am models
• Compatible with third- and fourth-generation F-body platforms
• Designed for lowered cars using a panhard-bar relocation kit
• Lowers the driver-side panhard-bar mounting point by 2.25 inches
• Helps correct panhard-bar angle after chassis-side relocation
• Provides clearance between the panhard bar and its support brace
• Precision laser-cut construction
• Jig-built for consistent fitment
• Satin-black powder-coated finish
• High-grade mounting hardware included
• Compatible with factory GM rear axle housings only

Installation requirements: Installation requires drilling two 3/8-inch holes for the anti-rotation hardware. This bracket is designed for a factory GM rear-end housing and is not compatible with aftermarket axle housings unless otherwise verified.

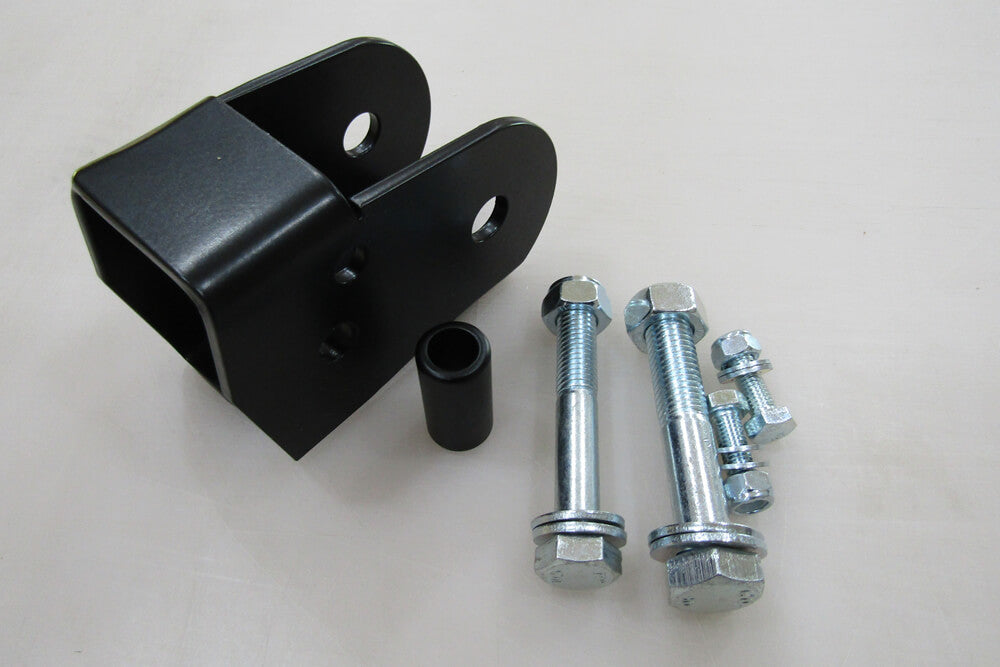

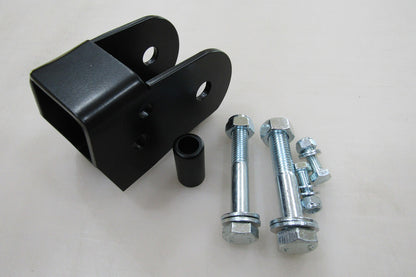

Product includes: Bracket & hardware
